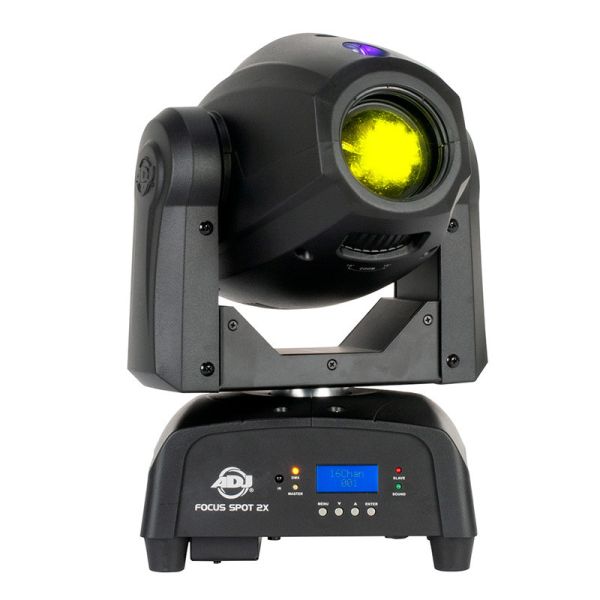

American DJ Focus Spot 2X Moving Head
SKU
592057
£868.00
In stock
100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues.
Categories: Default Category Migrated, DJ Lighting, Moving Heads
The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues. It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the Focus Spot 2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.
The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, locking 3-pin DMX In/Out, Locking Power In/Out connectors, and a 4-Button DMX LCD menu.
The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.
The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, locking 3-pin DMX In/Out, Locking Power In/Out connectors, and a 4-Button DMX LCD menu.
The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.
Light Source:
- 1 x 100W Cold White LED (7600˚K, 50,000 hr.)
• 1 x 3W UV LED
Features:
- Motorized Focus
• Manual Zoom knob on head: 16 ~ 19-degree beam angle
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast
• UC IR and Airstream IR compatible (Sold Separately)
Color Wheel:
- 8 Colors + White & Split Colors
GOBO Wheel:
- 6 Rotating, replaceable Gobos + Spot
• Gobo Size: Outer: 23.8mm/Inner:19mm/Thickness: 0.2mm
• Gobo Indexing
• EZ Gobo replacement with hinged head cover
• Gobo Shake effect
Prism Wheel:
- 6-facet circular prism
• 6-facet linear prism
Control:
- 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• Primary/Secondary Mode
• 4 Built-in lighting shows
• 16 & 18 DMX channel modes
• Electronic Dimming: 0% - 100%
• 5 Dimmer Curves
• 4-Button DMX LED menu
• Stepper motors with micro stepping
• With Wired Digital Communication Network
Connections:
- Locking 3-pin DMX In/Out
• Locking Power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)
Pan/Tilt:
- Fast and precise Pan/Tilt Movements
• 16-Bit Fine Pan/Tilt control
• Pan: 540-degree
• Tilt: 270-degree
• Pan/Tilt Invert Mode
• 4 Built-In Pan/Tilt Target Modes
Electrical:
- Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Consumption: 175W
Dimensions / Weight:
- Dimensions (LxWxH): 9.33” x 9.10” x 15.15”/ 237 x 231 x 385mm
• Weight: 14.5lbs. / 6.5kgs.
What’s Included:
- Includes Omega bracket for truss mounting
• Includes Locking Power cable
2 Year Warranty
