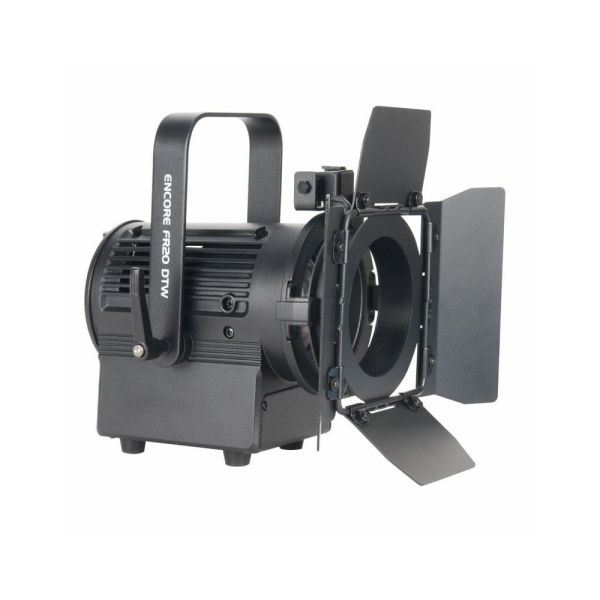

American DJ Encore FR20 DTW
SKU
602182
£129.00
In stock
American DJ ENCORE FR20 DTW
Category: LED Par Cans
Part of the Encore stage lighting series, the Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or standard wall dimmers.
The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light and a additional lens filter to change the beam angle from 19-degrees to 45-degrees.
The American DJ Encore FR20 DTW is a versatile lighting fixture designed for stage and event applications. Key features include:
1. **Warm White LED:** Features a powerful 2,000K warm white LED source for a classic incandescent look.
2. **Dimming and Shutter Control:** Offers smooth dimming and adjustable shutter speed to create dynamic lighting effects.
3. **Gobo Slot:** Includes a gobo slot for projecting patterns or logos, enhancing visual effects.
4. **Manual Focus:** Allows for precise control of the projected image's sharpness.
5. **Compact Design:** Compact and lightweight fixture for easy installation and transport.
6. **Multiple Control Options:** Supports DMX control, standalone operation, and onboard control via an OLED display.
7. **Built-in Barn Doors:** Adjustable barn doors for shaping and directing the light output.
8. **Convection Cooling:** Silent and efficient convection cooling, suitable for quiet environments.
9. **Rugged Build:** Durable construction for reliable performance in various settings.
10. **Ideal for Stage Lighting:** Perfect for theaters, churches, clubs, and events requiring warm white spotlighting and gobo projection.
1. **Warm White LED:** Features a powerful 2,000K warm white LED source for a classic incandescent look.
2. **Dimming and Shutter Control:** Offers smooth dimming and adjustable shutter speed to create dynamic lighting effects.
3. **Gobo Slot:** Includes a gobo slot for projecting patterns or logos, enhancing visual effects.
4. **Manual Focus:** Allows for precise control of the projected image's sharpness.
5. **Compact Design:** Compact and lightweight fixture for easy installation and transport.
6. **Multiple Control Options:** Supports DMX control, standalone operation, and onboard control via an OLED display.
7. **Built-in Barn Doors:** Adjustable barn doors for shaping and directing the light output.
8. **Convection Cooling:** Silent and efficient convection cooling, suitable for quiet environments.
9. **Rugged Build:** Durable construction for reliable performance in various settings.
10. **Ideal for Stage Lighting:** Perfect for theaters, churches, clubs, and events requiring warm white spotlighting and gobo projection.
Source
• Light Source: 1 WW COB-LED
• Individual LED wattage : 17W
• Average LED lifetime : approximately 50,000 hrs.
• Color TemperatAure: 3000K
• CRI: 92
Optics
• Beam Angle: 19 degrees
• Additional 45-degrees Lens-Kit included
Control
• 2 operational Modes : Manual Dimming Potentiometer or DMX Control via external TRIAC Dimmer
• Electronic Dimming: 0 - 100% via potentiometer
Colors
• Warm White 3000K
Construction
• Robust extruded aluminium housing
• Manual Dimming knob on rear
• Barndoors & Gel Filter Frame included
Electrical
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 17W
Connections
• Fixed Power Cable
Dimensions & Weight
• Dimensions (LxWxH):
Without Barndoors: 185 x 160.89 x 209.85mm
With Barndoors: 269.21 x 160.89 x 209.85mm
• Weight:
Without Barndoors: 1,95 kg.
With Barndoors: 2,25 kg
1 Year Warranty
