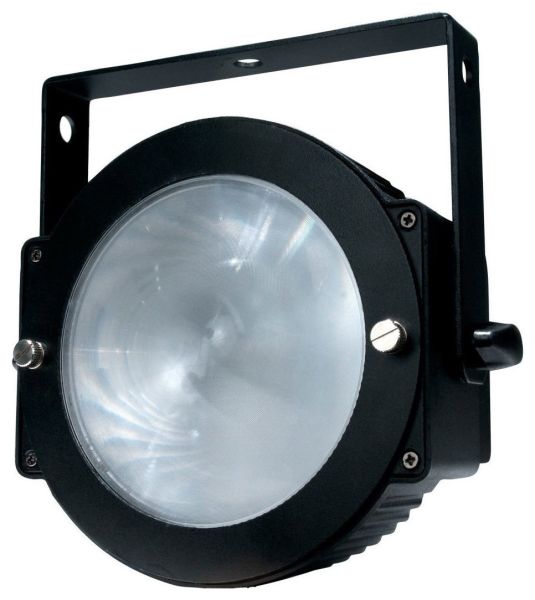

American DJ Dotz Par COB LED
High output slim low profile Par fixture with one TRI (3-IN-1) RGB COB LED
- Buy 2 for £117.50 each and save 1%
The Dotz Par produces wash of 60-degrees (25-degrees if you put on the supplied lens kit). It has 4 DMX Channel modes for programming flexibility, 35 built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining , and a 4-button LCD DMX display. Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller , or from the ADJ DOTZ RF wireless remote control.
Specifications
- High output slim low profile Par fixture with one TRI (3-IN-1) RGB COB LED
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- Use as Wash/par or Pixel Mapped for a stunning visual effect
- 5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX Controlled Mode
- 4 DMX channel modes: 3, 4, 5 or 9 channel
- Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
- Built-In preset colors and programs
- Flicker Free operation (No flickering on camera)
- 35 built-in Color Macros
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- Beam angle: 60-degrees (25-degrees with supplied lens kit)
- 3-pin XLR chassis mount connectors for DMX linking
- IEC AC IN/OUT to daisy chain power (up to 13 Dotz Par's @ 110V and 28 Dotz Par's @ 230V)
- Power Draw: 36W total (All LEDs @ Full On)
- 4-button LCD DMX display on rear panel
- Compatible with ADJ Dotz RF wireless remote control (sold separately ID 1223200035)
- Single yoke allows fixture to be mounted
- Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
- Dimensions (LxWxH): 340 x 140 x 140mm
- Weight: 2 kg.
Specifications subject to change without notice.
- Advanced COB (Chip On Board) Technology
- TRI 36W LED Engine (3 in 1)
- 60-degrees Wash Effect
- 25-degrees Wash Effect (Whilst using the supplied lens kit)
- 4 DMX Channel Modes
- 35 Built-In Color Macros
- 5 Selectable Dim Curves
High output slim low profile Par fixture with one TRI (3-IN-1) RGB COB LED
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- Use as Wash/par or Pixel Mapped for a stunning visual effect
- 5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX Controlled Mode
- 4 DMX channel modes: 3, 4, 5 or 9 channel
- Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
- Built-In preset colors and programs
- Flicker Free operation (No flickering on camera)
- 35 built-in Color Macros
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- Beam angle: 60-degrees (25-degrees with supplied lens kit)
- 3-pin XLR chassis mount connectors for DMX linking
- IEC AC IN/OUT to daisy chain power (up to 13 Dotz Par’s @ 110V and 28 Dotz Par’s @ 230V)
- Power Draw: 36W total (All LEDs @ Full On)
- 4-button LCD DMX display on rear panel
- Compatible with ADJ Dotz RF wireless remote control (sold separately ID 1223200035)
- Single yoke allows fixture to be mounted
- Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
- Dimensions (LxWxH):
209 x 222 x 114mm (with bracket)
165 x 165 x 114mm (without bracket)
- Weight: 2 kg.
