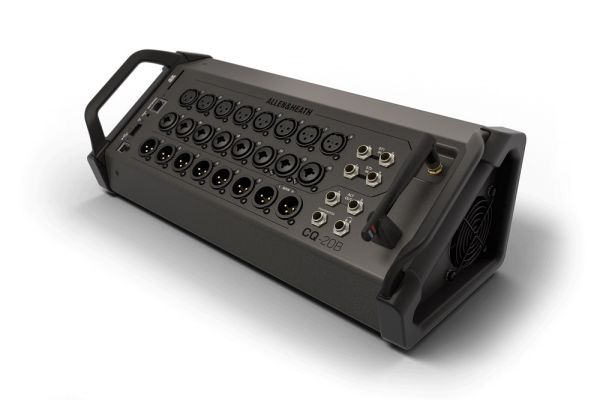

Allen & Heath CQ20B Small Format Digital Mixer With Wifi
Category: Podcast & Livestreaming Essentials
Designed for life on the stage, CQ-20B is the highest channel-count mixer in the range and is controlled via the free CQ MixPad app.
CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.
CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.
- 20x Inputs to Mix
- (16x Mono/Linkable, 4x Stereo)
- Stereo MainLR Output
- 6x Aux Outputs
- (Linkable up to 3x Stereo)
- 8x XLR Mic/Line Input Sockets
- 8x XLR/Jack ‘Combi’ Mic/Line Input, Sockets (2 with Hi-Z option)
- 2x Stereo Line Input Sockets (each 2x TRS)
- 8x XLR Output Sockets
- 2x TRS Alt Out Sockets
- Stereo Headphone Output
- Dedicated Stereo USB Input to Mix
- Dedicated Stereo Bluetooth Input to Mix
- 96kHz Input/Output Processing
- 4x Multi-FX Engines
- Built-In Dual Band WiFi (CQ as Host)
- RJ45 Network Socket (CQ as Client)
- USB-A For Stereo Audio Record/Playback and Data
- USB-B For Multichannel Audio Record/Playback (24x24)
- SD Card Slot for Multichannel Audio Record/Playback (24x24)
- Configurable Single/Dual Footswitch Connection
- 4x Mute Groups
- 4x DCAs
- Configurable Chromatic Channel Meter LED
- Rack Mountable (Optional Kit Available)
- IEC Mains Connection with Worldwide PSU
- Control Via Free Apps – Windows/MacOS/iOS/Android
Inputs
Outputs
Record/Playback
USB-A
Connectivity
- Mic/Line Inputs: Balanced XLR, Balanced XLR/TRS Combi, fully recallable preamp
- Phantom Power: +48V (+3V / -2V)
- Input Sensitivity: -60 to +0dBu
- Line Inputs (Combi Sockets): -20dB Pad (Fixed)
- Analogue Gain: 0dB to +60dB, 1dB steps
- Maximum Input Level: +17dBu (XLR), +30dBu (TRS)
- Input Impedance: >1.5kΩ (XLR), >10kΩ (TRS)
- THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, USB soundcard, @0dBu 1kHz)
- THD+N, Mid gain +30dB: 0.004% -88dBu (20Hz-20kHz, USB soundcard, @-30dBu 1kHz)
- Stereo Line Input Connection: Balanced, 1/4" TRS Jack, Normalled (Left/Mono)
- Input Sensitivity: Nominal +4dBu
- Trim: +/-24dB
- Maximum Input Level: +21dBu
- Input Impedance: >10kΩ
Outputs
- Main LR Outputs: Balanced, XLR
- Outputs 1-6: Balanced XLR
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -88dBu (muted, 20Hz-20kHz)
- System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
- Dynamic Range: 110 dB
- Frequency Response: +0/-0.5dB 20Hz to 20kHz
- Headroom: +18dB
- Internal operating Level: 0dBu
- THD+N, Mic routed to Main L/R Out: +10dBu input, 0dB system gain, 0.003%, -92dB (Relative, 20-20kHz)
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR output)
- Sampling Rate: 96kHz
- Bit Depth: Custom bit depth, up to 96-bit
- Latency: <0.7mS, Local Mic Input to Main L/R, with all processing in or out
- Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
- Power: 100-240V AC, 50/60Hz, 45W max
Record/Playback
USB-A
- Stereo Record: 48/96 kHz, 24-bit WAV format. Patchable from Outputs, ST in, or FX Units
- Stereo Playback: 44.1/48/96 kHz, 16/24 bit, Mono/Stereo WAV files
- USB 2.0, Core Audio compliant, ASIO/WDM for Windows, 48/96 kHz, 24-bit
- Send / Return: 24 channels / 24 channels
- SDHC, 32 GB, UHS-I, Class 10 for maximum channels, 48/96 kHz, 24-bit
- Multitrack Record: 16 channels @ 96kHz or 24 channels @ 48kHz
- Multitrack Playback: 16 channels @ 96kHz or 24 channels @ 48kHz
Connectivity
- Wi-Fi Access Point: 802.11 a/b/g/n/ac (dual band, auto channel)
- Bluetooth: 4.1 (high quality stereo playback)
- Dimensions: W x D x H: 372 x 154 x 134 mm
- Weight: 2.6 kg
1 Year Warranty
