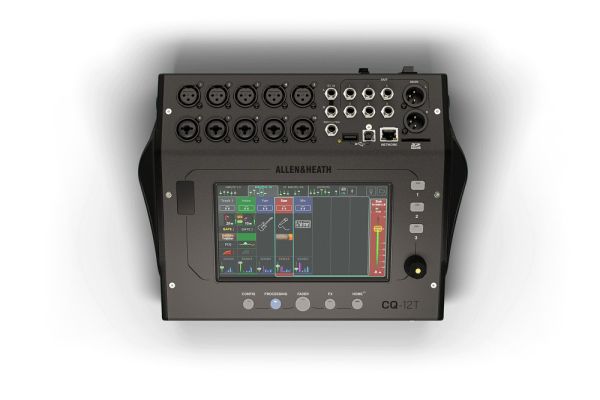

Allen & Heath CQ12T Compact Digital Mixing Console With Touchscreen
SKU
838321
Special Price
£649.00
Regular Price
£699.00
Back Order
Allen & Heath CQ12T Compact Digital Mixing Console With Touchscreen
Category: Podcast & Livestreaming Essentials
CQ-12T is the smallest mixer in the CQ range and is ideal for home recording and streaming, band rehearsals, small gigs, and speech applications.
CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.
CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.
- 13x Inputs to Mix (10x Mono/Linkable, 3x Stereo)
- Stereo MainLR Output
- 6x Aux Outputs (Linkable up to 3x Stereo)
- 5x XLR Mic/Line Input Sockets
- 5x XLR/Jack ‘Combi’ Mic/Line Input Sockets
- Stereo Line Input (2x TRS)
- 2x XLR Output Sockets (MainLR)
- 6x TRS Output Sockets
- Stereo Headphone Output
- Dedicated Stereo USB Input to Mix
- Dedicated Stereo Bluetooth Input
- 96kHz Input/Output Processing
- 2x Multi-FX Engines
- RJ45 Network Socket (CQ as Client)
- USB-A For Stereo Audio
- Record/Playback and Data
- USB-B For Multichannel Audio Record/Playback
- SD Card Slot for Multichannel Audio Record/Playback
- 7” Capacitive Touchscreen with 5x Screen Keys
- 3x Configurable SoftKeys
- Configurable Single/Dual ,Footswitch Connection
- 4x Mute Groups
- 4x DCAs
- Rack Mountable (Optional Kit Available)
- Control Via Free Apps – Windows/MacOS/iOS/Android
Inputs
Stereo Line Input
Outputs
System
Record/Playback
USB-A:
Dimensions
- Mic/Line Inputs: Balanced XLR, Balanced XLR/TRS Combi, fully recallable preamp
- Phantom Power: +48V (+3V / -2V)
- Input Sensitivity: -60 to +0dBu
- Line Inputs: (Combi Sockets) -20dB Pad (Fixed)
- Analogue Gain: 0dB to +60dB, 1dB steps
- Maximum Input Level: +17dBu (XLR), +30dBu (TRS)
- Input Impedance: >1.5kΩ (XLR), >10kΩ (TRS)
- THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, USB soundcard, @0dBu 1kHz)
- THD+N, Mid gain +30dB: 0.004% -88dBu (20Hz-20kHz, USB soundcard, @-30dBu 1kHz)
Stereo Line Input
- Stereo Line Input Connection: Balanced, 1/4" TRS Jack, Normalled (Left/Mono)
- Input Sensitivity: Nominal +4dBu
- Trim: +/-24dB
- Maximum Input Level: +21dBu
- Input Impedance: >10kΩ
Outputs
- Main LR Outputs: Balanced, XLR
- Outputs 1-6: Balanced, 1/4" TRS Jack
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -88dBu (muted, 20Hz-20kHz)
System
- System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
- Dynamic Range: 110 dB
- Frequency Response: +0/-0.5dB 20Hz to 20kHz
- Headroom: +18dB
- Internal operating Level: 0dBu
- THD+N, Mic routed to Main L/R Out: +10dBu input, 0dB system gain, 0.003%, -92dB (Relative, 20-20kHz)
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Sampling Rate: 96kHz
- Bit Depth: Custom bit depth, up to 96-bit
- Latency: <0.7mS, Local Mic Input to Main L/R, with all processing in or out
- Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
- Power: 12V DC, 5A (100-240V AC, 50/60Hz input PSU supplied), 35W max
Record/Playback
USB-A:
- Stereo Record: 48/96 kHz, 24-bit WAV format. Patchable from Outputs, ST in, or FX Units
- Stereo Playback: 44.1/48/96 kHz, 16/24 bit, Mono/Stereo WAV files
- USB 2.0, Core Audio compliant, ASIO/WDM for Windows, 48/96 kHz, 24-bit
- Send / Return: 16 channels / 16 channels
- SD Card: SDHC, 32 GB, UHS-I, Class 10 for maximum channels, 48/96 kHz, 24-bit
- Multitrack Record: 16 channels @ 96kHz or 48kHz
- Multitrack Playback: 16 channels @ 96kHz or 48kHz
- Bluetooth: 4.1 (high quality stereo playback)
Dimensions
- W x D x H 291 x 242 x 89 mm
- Weight: 2.4 kg
1 Year Warranty
