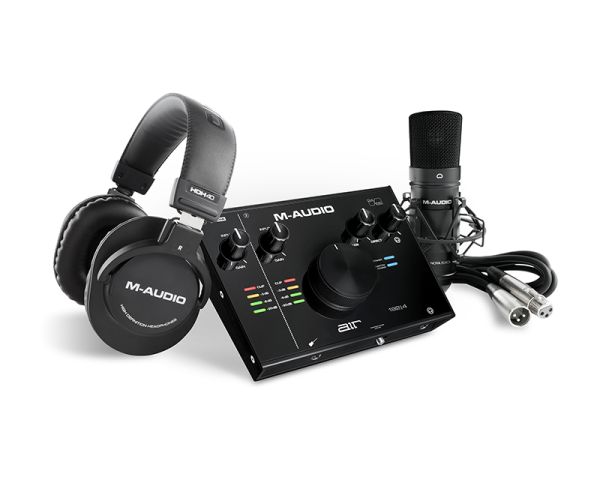

AIR 192|4 Vocal Studio Pro Package
We've included software to match your style!
The AIR 192|4 Vocal Studio Pro comes complete with a software package that has everything to get you started making professional recordings right out of the box. With a powerful DAW to suit your production needs, AIR 192|4 Vocal Studio Pro includes Ableton Live Lite and MPC Beats.
We’ve also added an entire Effects Plugin, Virtual Instruments and Loop package to cater to all your production needs. Whether you need a guitar tone, reverb, or delay we’ve got your effects needs covered with Revalver, 80 effect plugins and AIR’s Creative FX Collection. With the included AIR Virtual Instrument plugins, you’ll have a virtual synth, strings, percussion, organ and piano plugins to add world-class-sounding instruments to your songs with ease.
More Than Just an Interface
This is the creative center of your recording setup: The simple-to-use, style-infused AIR 192|4 audio interface is the perfect tool to record and produce natural-sounding 24-bit/192kHz studio-quality recordings. Combining one XLR+¼” balanced combo input and an all-new dedicated ¼” instrument input, the AIR 192|4 enables you to record two channels simultaneously.
Crystal Preamps, Pristine A/D Converters and Premium Components
Fusing an elegant pro-grade metal chassis, USB & USC-C connection cables, our exclusive Crystal™ low-noise pre-amps and pristine A/D converters that deliver the highest audio performance in their class, the AIR 192|4 provides all the tools you need to capture that initial idea and transform it into a finished masterpiece with ease. Take your music to the next level and start recording now!
Professional Recording—Done!
Studio-grade recording demands the right tools for the job. M-Audio’s Nova Black large-diaphragm condenser microphone is perfect for podcasting applications or capturing high-quality audio from vocalists, instruments, percussion and more.
At the heart of the Nova Black microphone is an 18mm pure aluminum condenser capsule with a directional cardioid polar pattern. This delivers wide range frequency response (20–20kHz, resulting in a microphone that captures even the most subtle nuances.
Thanks to an included windscreen, a purpose-designed shock-mount for mounting to a traditional mic stand and an XLR cable, everything you need to get connected and start recording is included.
- 24-bit/192kHz resolution for professional recording and monitoring
- Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
- Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
- VU LED meters for dialing in the perfect level
- (1) XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available
- Stereo ¼” outs; ¼” headphone out with independent level control
- Rugged metal chassis; large central control for easy volume adjustment
- USB/Direct knob for balancing between the input signal and the computer signal
- NOVA Black condenser microphone
- HDH40 monitoring headphones *Round trip latency is dependent on buffer settings, and computer hardware
| TYPE | Back Electret condenser microphone |
| ELEMENT | 18 mm pure aluminum diaphragm capsule |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz |
| SENSITIVITY | -38 dB (0 dB = 1 V/Pa @ 1 kHz) |
| RATED IMPEDANCE | 200Ω |
| MAXIMUM SPL | 136 dB |
| PHANTOM POWER REQUIRED | +48 V |
| S/N RATIO | 77 dB |
| CURRENT CONSUMPTION | 3 mA |
HDH40 Headphones
| ACOUSTIC DESIGN | Dynamic, Closed |
| DRIVER | 40 mm, neodymium |
| FREQUENCY RESPONSE | 15 Hz – 22 kHz |
| SENSITIVITY | 95 dB ±3 dB |
| RATED IMPEDANCE | 32Ω |
| EARPAD | Leatherette |
| CABLE LENGTH | 9.8 ft. / 3 m |
Mic Input 1 (balanced XLR)
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.1 dB) |
| DYNAMIC RANGE | 104 dB (A-weighted) |
| SIGNAL-TO-NOISE RATIO | 104 dB (+1.0 dBu, A-weighted) |
| THD+N | 0.003% |
| PREAMP EIN | -128 dBu (max gain, 150 Ω source, A-weighted) |
| MAX INPUT LEVEL | +1.5 dBu |
| GAIN RANGE | 55 dB |
Line Input 1 (balanced 1/4" [6.35 mm] TRS)
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| SIGNAL-TO-NOISE RATIO | 101 dB (1 kHz, +4 dBu, A-weighted) |
| THD+N | 0.003% |
| MAX INPUT LEVEL | 16 dBu |
| GAIN RANGE | 55 dB |
Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| DYNAMIC RANGE | 100 dB (A-weighted) |
| SIGNAL-TO-NOISE RATIO | 102 dB (+ 4 dBu, A-weighted) |
| THD+N | 0.004% |
| MAX INPUT LEVEL | 6 dBu |
| INPUT IMPEDANCE | 1 MΩ |
| GAIN RANGE | 24 dB |
Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.06 dB) |
| DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO | 102 dB (A-weighted) |
| THD+N | 0.005% |
| MAX OUTPUT LEVEL | +7 dBu (1 kHz, -1 dBFS) |
Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
| THD+N | 0.005% |
| OUTPUT IMPEDANCE | 10 Ω |
General
| POWER | USB-bus-powered |
| DIMENSIONS (WIDTH X DEPTH X HEIGHT) | 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm) |
| WEIGHT | 2.0 lbs. 0.9 kg |
All specifications are measured at 20 kHz bandwidth. Specifications are subject to change without notice.
Minimum System Requirements
macOS: 10.8 Class Compliant
PC: Windows 7, Windows Driver
Standard USB 2.0 or USB-C Port
