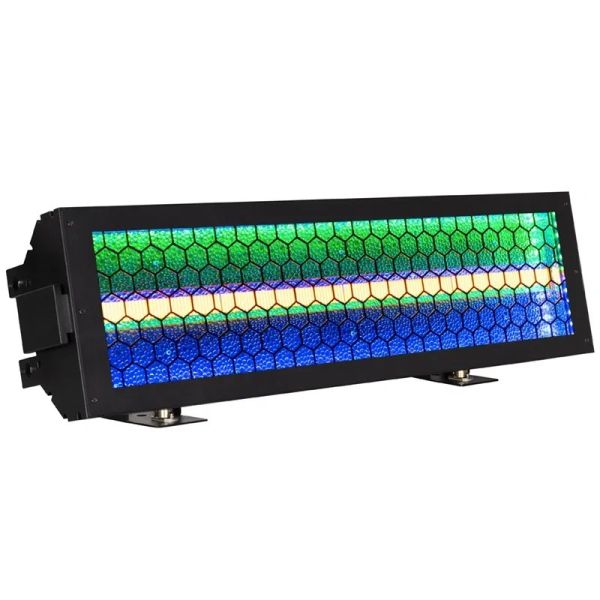

ADJ Vintage Bar – Versatile Scenic Lighting Fixture
Vintage Charm Meets Modern Lighting Technology
The ADJ Vintage Bar is a professional scenic lighting fixture that blends retro aesthetic charm with cutting-edge functionality. Designed for stage productions, live events, theatre, and immersive lighting setups, it delivers a unique combination of blinder effects and vibrant RGBL background lighting, making it perfect for captivating audiences and inspiring creative designs.
Dual-Purpose Lighting for Maximum Creative Control
The Vintage Bar features four high-power 150W amber COB LEDs (2000K) for a classic retro blinder effect, producing over 27,000 lumens and exceptional coverage with a 160° field angle. Combined with 120 SMD 5050 RGBL LEDs arranged in 20 pixel groups, it provides stunning multi-color background effects, smooth dimming transitions, and eye-catching wash lighting.
Advanced Features for Professional Use
- Powerful strobe effects ranging from 0.5 to 33Hz
- Retro RGBL background animations for dynamic stage visuals
- Silent operation for noise-sensitive environments
- Flicker-free performance for video and broadcast applications
- OLED display with intuitive 4-button touch menu for easy navigation
- Aria X2 wireless management system for over-the-air firmware and software updates
Flexible Control Options
The ADJ Vintage Bar offers multiple control modes to suit any production:
- Stand-alone mode for simple setups
- DMX512 control with 10 channel modes ranging from 5 to 97 channels
- Primary/Secondary synchronization for multi-unit coordination
- Support for DMX, RDM, and Art-NET protocols
- Pixel mapping and interlocking capability for immersive lighting designs
Robust and Reliable Engineering
Built with professional-grade construction, the Vintage Bar supports indoor and outdoor use with:
- IP20 indoor DMX Input/Thru and RJ45 Ethernet connection
- IP65 outdoor power locking Input/Thru
- Linear dimming (0–100%) for smooth fades
- Optional floor base accessories (VFB & VFB-VBA) for vertical mounting
Why Choose the ADJ Vintage Bar?
The ADJ Vintage Bar is perfect for lighting professionals seeking versatility, reliability, and creative flexibility. With its combination of retro amber blinder effects, RGBL pixel mapping, advanced strobe control, and wireless management, it elevates live performances, theatrical productions, and event lighting to the next level.
Main Technical Parameters:
• Primary Light Source: 4 pcs high-power 150W COB Amber LED
- CCT: 2000K
- Lumens: > 27,000
- Lux: 647 @ 5 meters
- CRI: 70
- Field Angle: 160°
Secondary Light Source:
- 120 pcs SMD 5050 RGBL LEDs (0.8W each)
- Configured into 20 pixel groups (6 LEDs per group)
Special Effects:
- Powerful strobe, 0.5 to 33Hz
- Unique retro RGBL background effect
- Silent operation with low noise
Additional Features:
- Aria X2 Management System
- Flicker-free
- OLED display with a 4-button touch menu
- Capable of interlocking multiple units together
- Dimmer: 0-100% linear dimming system
Control Modes:
- Primary/Secondary synchronization
- Stand-alone mode
- DMX512 control mode
- 10 DMX Channel Modes (5/6/8/14/17/18/84/88/90/97 channels)
- DMX, RDM, and Art-NET protocol support
Connections:
- IP20 indoor 5-pin DMX Input and Thru
- IP20 indoor RJ45 Ethernet
- IP65 outdoor power locking Input and Thru
Dimensions & Weight:
- Dimensions (LxWxH): 908x292x257mm
- Weight: 19 kg
Power:
- Input: AC100-230V/50Hz-60Hz
- Power Consumption: 750W @ 230V
- Power Link: 2 pieces @ 230V
Optional Accessories:
- VFB (Floor Base for Vertical Stand)
- VFB-VBA (Adapter to Adapt Vintage Bar to VFB Floor Base. One Adapter is Required per Floor Base)
Specifications are subject to change without notice.
