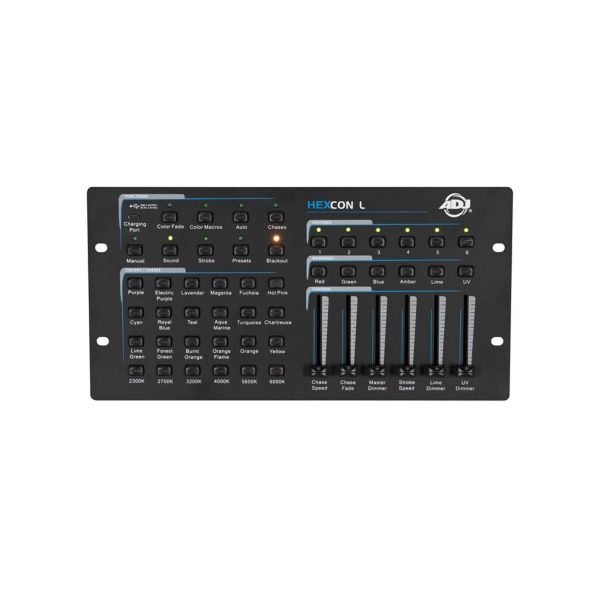

ADJ HEXCON L 36-Channel DMX Controller for RGBAL+UV HEX Fixtures
SKU
551887
£115.00
In stock
The ADJ HEXCON L is a 36-channel DMX controller designed for intuitive control of RGBAL+UV HEX Series fixtures. Featuring 30 colour presets, 6 user presets, multi-function faders, sound-active mode and 5-pin DMX output, it offers precise hands-on lighting control for DJs and venues.
Category: Lighting Controllers & Software
ADJ HEXCON L – 36-Channel DMX Controller for HEX Series LED Fixtures
Precision Control for HEX Series LED Fixtures
The ADJ HEXCON L is a compact yet powerful 36-channel DMX controller engineered specifically for RGBAL+UV HEX Series LED fixtures.
Designed for DJs, venues, production companies and lighting professionals, it delivers intuitive, hands-on control without complex programming.
Control Up to 6 Fixtures or Groups
The HEXCON L allows direct control of up to six RGBAL+UV fixtures or fixture groups with dedicated buttons for streamlined workflow.
Perfect for:
- Mobile DJs
- Event lighting setups
- Bars and clubs
- Stage wash lighting
- Uplighting applications
Direct Colour Access & User Presets
Lighting control should be fast and creative.
The HEXCON L features:
- 30 direct-access colour preset buttons
- 6 user-programmable preset slots
- Instant recall for consistent event lighting
This allows you to quickly switch scenes or store your own custom colours for repeat performances.
Hands-On Fader Control
Six multi-function faders provide real-time adjustment of:
- Colour intensity
- Chase speed
- Fade time
- Master dimming
- Strobe rate
Versatile Performance Modes
Eight function buttons provide immediate access to:
- Colour Fade
- Colour Chase
- Colour Macro
- Auto Mode
- Sound Active Mode
- Manual Mode
- Preset Mode
- Blackout
The built-in microphone enables sound-active operation with adjustable sensitivity — ideal for DJs synchronising lighting to music.
Variable strobe control ranges from 0.33Hz to 11Hz for subtle pulses or high-energy effects.
Professional Connectivity & Power
The HEXCON L includes:
- 5-pin XLR DMX output
- USB-C charging port
- 5VDC 3A USB-C power supply (included)
It also features IP20 protection for indoor use and operates within a wide ambient temperature range for reliable performance.
Built for Portable & Installed Applications
With a compact footprint and durable design, this controller is suitable for:
- Touring DJ rigs
- Permanent venue installs
- Rental and production inventory
- Corporate event lighting
Its streamlined interface eliminates complex DMX programming while still delivering professional control.
- 36-channel DMX controller
- Designed for RGBAL+UV HEX Series fixtures
- Control up to 6 fixtures or groups
- 30 direct colour preset buttons
- 6 user-programmable presets
- 6 multi-function faders
- Sound-active mode with internal mic
- Variable strobe (0.33Hz–11Hz)
- 5-pin XLR DMX output
- USB-C charging port
- Blackout function
DMX Channels 36
Fixture Control Up to 6 RGBAL+UV fixtures/groups
Presets 30 colour + 6 user
Strobe Range 0.33Hz – 11Hz
DMX Output 5-pin XLR
Power Input 5VDC 3A USB-C
Power Consumption 15W
IP Rating IP20
Dimensions 360 × 183 × 69 mm
Weight 1.74 kg
Operating Temp -20°C to 40°C
Storage Temp -30°C to 45°C
1 Year Warranty
