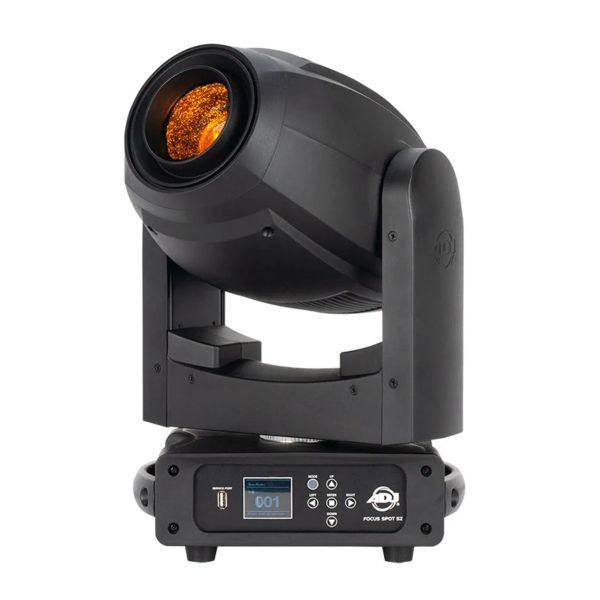

ADJ Focus Spot 5Z – 200W LED Moving Head Spot with Motorised Zoom & Focus

The ADJ Focus Spot 5Z is a high-performance LED moving head fixture powered by a brilliant 200W cool white LED engine. Designed for professional stage productions, live events, nightclubs, churches, and installations, this powerful moving head delivers bright projection, precise beam control, and advanced lighting effects in a compact and lightweight design.

With motorised zoom and focus, rotating gobos, dual prisms, and vibrant colour wheels, the Focus Spot 5Z provides everything lighting designers need to create dynamic and immersive shows.

The Focus Spot 5Z features a motorised zoom range of 11° to 22°, allowing lighting designers to easily transition between tight beams and wider spot projections.

Motorised focus ensures crisp gobo projection and sharp imagery at any distance, while the two built-in frost filters (light and heavy) allow smooth wash effects when required.

This moving head fixture includes a versatile selection of gobos and colours for creative stage visuals.

Gobo Wheel

• 6 rotating, indexable, replaceable gobos
• 1 glass gobo
• Open position for clean beam projection

Colour Wheels

• Two independent colour wheels
• 7 dichroic colours + open on each wheel
• Includes CTO, CTB, and UV filters

These features allow lighting designers to build layered colour effects and textured beam patterns for professional lighting productions.

The Focus Spot 5Z includes two rotating and indexable prisms for stunning beam multiplication effects:

• 6-facet circular prism
• 5-facet linear prism

These prisms add depth, motion, and dynamic visuals to performances.

The fixture provides extensive DMX control and professional-grade functionality.

DMX Modes

• 16 / 18 / 22 channel modes selectable

Advanced Control Features

• 16-bit fine pan and tilt positioning
• Pan: 540° or 630° selectable
• Tilt: 270°
• Pan/tilt auto correction
• Variable strobe and smooth 0–100% dimming

Dimming Options

• 6 dimming modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 4 dimming curves: Linear, Square, Inverse Square, S-Curve

RDM (Remote Device Management) compatibility allows remote monitoring and configuration in professional DMX setups.

The Focus Spot 5Z is designed for both touring productions and permanent installations.

Connectivity includes:

• Locking PowerTwist power input/output for daisy chaining
• 5-Pin DMX input/output
• USB firmware update port

The fixture also includes quick-release omega clamps for fast and secure mounting.

Despite its powerful output, the Focus Spot 5Z remains compact and portable.

• Height: 457 mm (18 inches)
• Weight: 10 kg (23 lbs)

This makes it ideal for touring rigs, mobile productions, and permanent installations where space and weight are important considerations.
