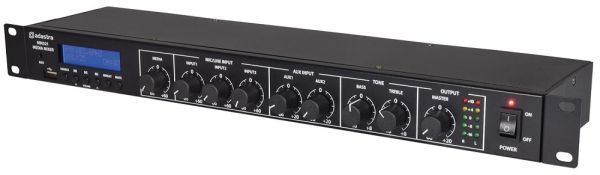

Rack-mountable 1U mixer with built-in media player and Bluetooth receiver.

3 mono inputs connect via XLR microphone or line input (switchable).

Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function.

Two stereo auxiliary line inputs are provided on RCA connectors with a stereo record output. Media player operating modes include 3.5mm Aux input, USB audio player, FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet.

Main left and right outputs are fed to XLR with an additional mono summed output on 6.3 jack.

Versatile yet easy to use as a main mixer for background music, public address and house PA systems.

Media player with USB playback and FM tuner

Switchable +20V phantom power

Variable priority muting for channel 1

24V emergency mute contacts

Power supply 100-240Vac, 50/60Hz (IEC)
Fuse T1AL
Inputs : Mic/Line 3 x XLR (bal/unbal)
Inputs : Aux 2 x L+R RCA
Input : line 3.5mm jack to media player
Audio source Internal Bluetooth, USB & FM player
Bluetooth version 5.0
Outputs L+R XLR, Mono 6.3mm jack, Record out (RCA)
Emergency control 24V contacts mute all except channel 1
Phantom power +20V (switchable channels 1-3)
Controls Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
Rear panel controls Priority muting level, mic/line and phantom DIP switches
Input impedance 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic 20Hz - 18kHz
Frequency response : line 14Hz - 20kHz
Frequency response : aux 10Hz - 23kHz
Input sensitivity : mic/line -45dBV
Input sensitivity : aux/line -10dBV
Signal to noise ratio : mic 55dB
Signal to noise ratio : aux/line 60dB
THD 0.05%
Dimensions 482 x 130 x 44mm
Weight 1.43kg

1 Year Warranty
