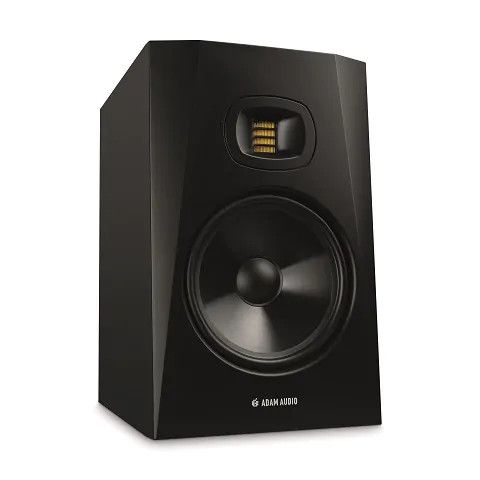

Adam Audio T8V Studio Monitor
Category: Studio & Home Monitor Speakers
The T8V is an affordable, professional 2-way powered studio monitor with an 8˝ woofer and ADAM Audio’s latest addition to the T Series.
The T8V impresses with a multitude of features that bring real benefits to the user: The U-ART tweeter’s 4:1 velocity transfer ratio, in combination with the new Class D amplifiers’ high dynamic range, yield respective max. peak SPL of 118 dB per pair. The tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.
The T8V is the perfect studio speaker for those who have always wanted to work with an 8“ monitor from ADAM Audio, but where budgets have been insufficient. The 5-year warranty gives users additional security and the certainty of having purchased a quality product.
The T8V impresses with a multitude of features that bring real benefits to the user: The U-ART tweeter’s 4:1 velocity transfer ratio, in combination with the new Class D amplifiers’ high dynamic range, yield respective max. peak SPL of 118 dB per pair. The tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.
The T8V is the perfect studio speaker for those who have always wanted to work with an 8“ monitor from ADAM Audio, but where budgets have been insufficient. The 5-year warranty gives users additional security and the certainty of having purchased a quality product.
General Data
Audio Input Connectors
Amplification
Acoustics
Drivers
Control Options
- Panel: Rear
- Max. Power Consumption: 150 W
- Weight: 21.6 lb (9.8 kg)
- Height x Width x Depth: 15.8″ x 9.8″ x 13.2″ (400 mm x 250 mm x 335 mm)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: Power cord, Quick Start Guide
Audio Input Connectors
- Analog: XLR / RCA
- Input Impedance: 10 kOhm / 20 kOhm
Amplification
- Woofer
- Amplifier Type: PWM
- Amp. Power RMS: 70 W
- Tweeter
- Amplifier Type: PWM
- Amp. Power RMS: 20 W
Acoustics
- Frequency Response: 33 Hz – 25 kHz (-6 dB)
- THD > 80 Hz: 0.5 %
- Max. SPL per pair at 1 m: ≥118 dB
- Crossover Frequency: 2.6 kHz
Drivers
- Woofer
- Basket Diameter: 8″
- Voice Coil Diameter: 1″
- Cone Material: Polypropylene
- Tweeter
- Type: U-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equiv. Diaphragm Diameter: 1.9″ (48 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS
Control Options
- Input Sensitivity: -10 to +4 dB
- Gain: Yes
- High Shelf EQ > 5 kHz: -2 dB, 0 dB, +2 dB
- Low Shelf EQ < 300 Hz: -2 dB, 0 dB, +2 dB
- U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
- Polypropylene 8” woofer and rear-firing bass-reflex port
- Total RMS Amp. Power: 90 W
- Frequency Response: 33 Hz - 25 kHz (-6dB)
- Max. SPL Per Pair at 1 m: ≥118 dB
